Install Block Retaining Wall

Building a block retaining wall can transform your outdoor space while providing essential support for soil and landscaping. Whether you’re looking to manage erosion or create a visually appealing garden feature, this project combines functionality with aesthetic appeal. You’ll not only enhance your property’s value but also enjoy the satisfaction of a DIY accomplishment.

Overview of Block Retaining Walls

Installing a block retaining wall involves several critical steps to ensure stability, proper drainage, and durability. Understanding the essential phases of this project simplifies the overall installation process.

Planning and Preparation

• Design and Layout: Plan the wall's layout precisely. Avoid positioning downspouts pointing at the wall and ensure soil and mulch are below the house siding if the wall is adjacent to your home. Use stakes, string, and marking paint to delineate the area.
• Check Regulations: Verify local building codes and homeowners association guidelines. Some areas require a permit before construction.

• Excavate the Trench: Dig a trench approximately 12 inches deep and 24 inches wide for the wall's length. For taller walls or unique site conditions, the trench may require additional depth and width.
• Compact the Subgrade: Compact the subgrade soil thoroughly. This process creates a stable base, essential for supporting the wall's weight and preventing shifting over time.

Materials Needed for Installation

You'll require specific materials to install a block retaining wall effectively. The right supplies ensure stability, durability, and proper drainage for your wall.

Types of Block Materials

• Concrete Retaining Wall Blocks: These primary components come in various styles, including lip connection systems and pin connection systems. Choose the style that fits your design and structural needs.
• AB Fieldstone Blocks: These blocks consist of facing units and anchoring units, designed for particular types of wall constructions. Select these based on the aesthetic and functional requirements of your project.

Base and Backfill Materials

• Crushed Stone or Gravel: Utilize these materials for the base and backfill. Recommended sizes include 1/2" to 3/4" crushed stone or 3/4" crushed gravel for optimal drainage and stability. Proper base material enhances the overall strength of the wall.
• Wall Rock: This material fills the hollow cores of the blocks and the area behind the blocks. It prevents water accumulation, providing necessary drainage while supporting the wall structure.

• Geotextile Fabric: This fabric helps separate the backfill from the soil, preventing soil infiltration and promoting draining.
• Leveling Tool: A leveling tool ensures the blocks are correctly placed, maintaining a consistent height and alignment across the wall.
• Tamper: Use a tamper to compact the soil and crushed stone during installation, ensuring a solid foundation.
• Adhesive or Mortar: Some projects may require adhesive or mortar to secure blocks in place, specially if designed for enhanced aesthetics or structural requirements.

Step-by-Step Installation Process

Follow these detailed steps to successfully install your block retaining wall. Each phase plays a crucial role in ensuring the wall's strength and longevity.

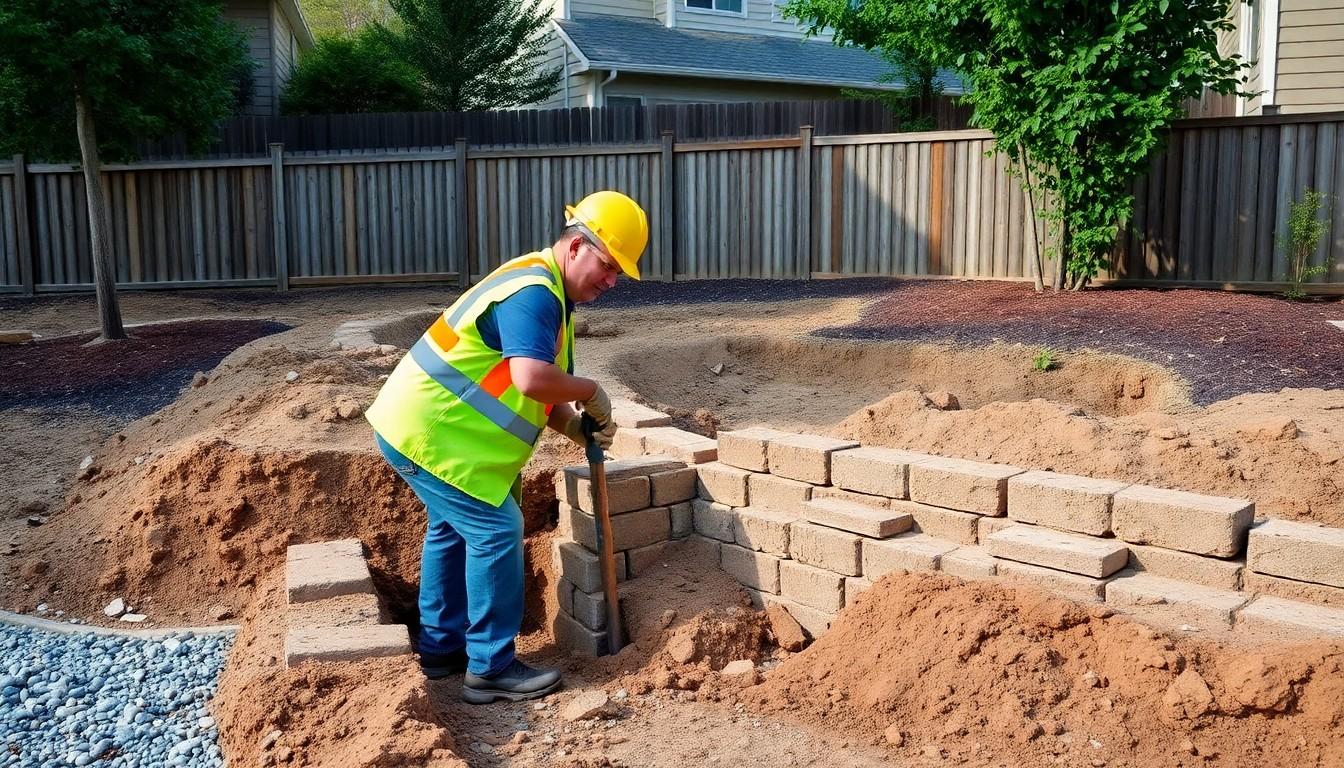

Preparing the Site

Excavate a trench to the designed width and depth for the base of the wall. Aim for a depth of approximately one block unit's height plus 6 inches, and a width that’s about one block unit plus 12 inches. Remove all surface vegetation and debris, avoiding the use of this material as backfill. Fill the trench with a 6-inch layer of clean 3/4" crushed gravel. Avoid using pea gravel. Compact and level this gravel to create a solid leveling pad. For areas with sloped grades, implement a stepped leveling pad to maintain stability.

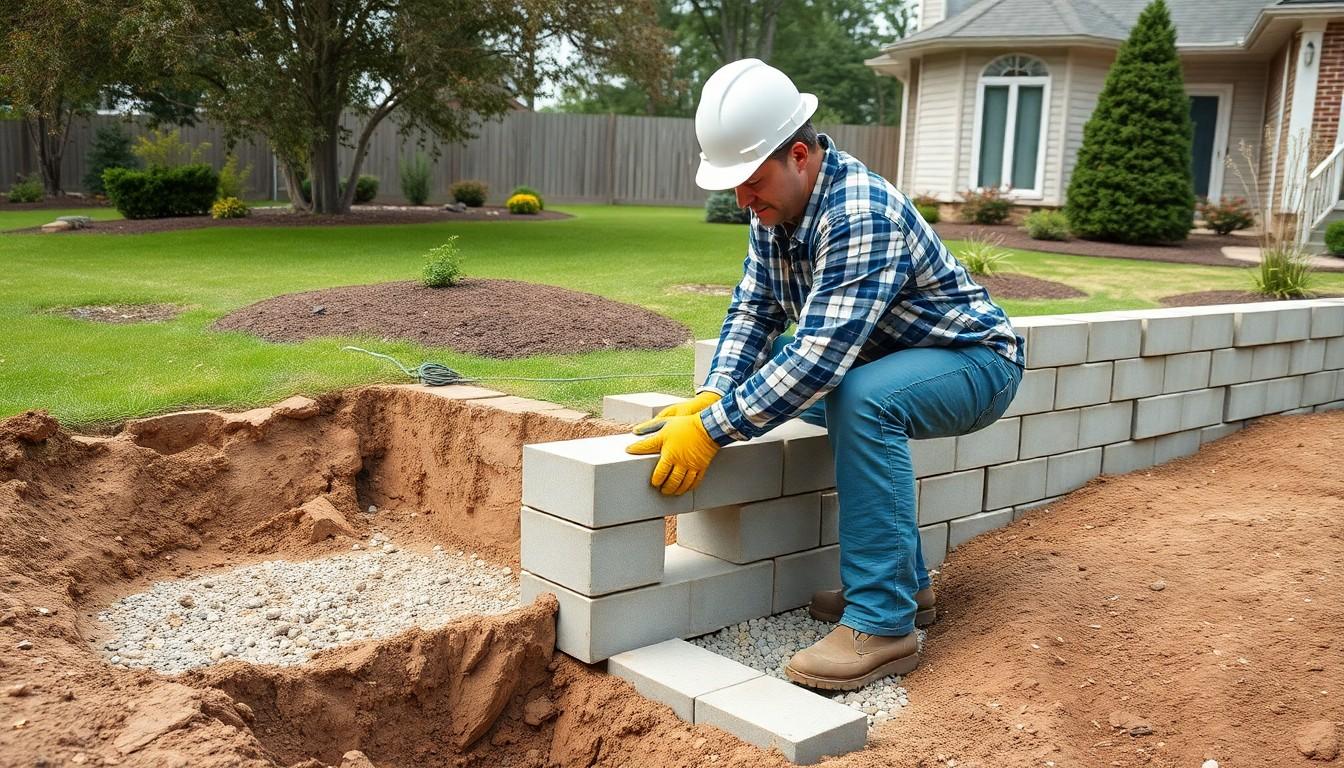

Laying the First Course

Lay the first course of blocks directly on the prepared gravel base. Ensure each block is level and aligned, maintaining a tight fit between blocks. Use a level tool to guarantee that each block sits evenly. Adjust the base as necessary to achieve level placement. For added stability, consider using adhesive or mortar between blocks if warranted.

Building Up the Wall

Stack subsequent courses, ensuring each block overlaps the one below for structural integrity. Maintain a consistent pattern while checking for level and alignment after placing each block. Tap down on blocks with a rubber mallet to secure them in place. Reinforce the wall if necessary, particularly on taller structures, to prevent tipping or rolling.

Backfilling and Drainage

Once the wall reaches the desired height, begin backfilling with gravel or wall rock behind the wall. Ensure the material is compacted evenly and avoid loading too much soil on the wall before it's fully set. Incorporate drainage solutions, such as perforated pipe, at the base to direct water away from the wall. Lay landscape fabric before adding soil to minimize sediment contact with the gravel, preserving drainage functionality and wall stability.

Common Challenges and Solutions

Building a block retaining wall presents challenges, particularly regarding uneven terrain and drainage. Addressing these issues ensures the wall's stability and longevity.

Uneven Terrain Issues

Dealing with uneven terrain requires careful preparation.

• Excavation and Leveling: Excavate a trench that’s wide and deep enough for the base course of the blocks. The depth should match the height of one block unit plus 6 inches, while the width should equal one block unit plus 12 inches.
• Compact the Subgrade: Compact the subgrade soil thoroughly to form a stable base. For sloped grades, create a stepped leveling pad that begins at the lowest elevation and moves upward. This method enhances stability and alignment.

Ensuring Proper Drainage

Proper drainage is crucial for retaining wall performance.

• Base Preparation: Fill the trench with a 6-inch deep layer of clean 3/4" crushed gravel. Compact this layer to ensure it forms a level and stable foundation.
• Landscape Fabric: Line the excavated area with landscape fabric. This addition prevents settling and preserves a firm base while allowing water to move freely through the drainage system.

By addressing these common challenges, you enhance the retention capabilities and longevity of your block retaining wall.

Conclusion

Building a block retaining wall is a rewarding project that not only enhances your outdoor space but also provides essential support for soil and landscaping. By following the outlined steps and using the right materials, you can create a durable structure that stands the test of time.

As you tackle any challenges that arise, remember that careful planning and execution are key to success. With the knowledge you've gained, you're well-equipped to embark on this DIY journey. Enjoy the process and take pride in the beautiful and functional addition to your property.

Frequently Asked Questions

What are the benefits of building a block retaining wall?

Building a block retaining wall offers several benefits, such as enhancing the beauty of your outdoor space, preventing soil erosion, and providing structural support for landscaping. It can also increase your property’s value and give you a sense of accomplishment through DIY projects.

What materials are needed for a block retaining wall?

Essential materials for a block retaining wall include concrete or stone blocks, crushed stone or gravel for base and backfill, wall rock, and geotextile fabric. Tools like a leveling tool and tamper are also necessary, along with adhesive or mortar for securing blocks.

How do I prepare the site for a block retaining wall?

Site preparation involves designing the layout, checking local regulations, excavating a trench, and compacting the subgrade soil. Proper preparation creates a stable base, ensuring the wall’s strength and durability over time.

What are the steps involved in installing a block retaining wall?

The installation process includes site preparation, laying the first course of blocks, stacking subsequent courses, and backfilling with proper drainage solutions. Each step is crucial for ensuring the wall's stability and longevity.

How do I address challenges like uneven terrain and drainage?

To deal with uneven terrain, carefully excavate and level the trench. For drainage issues, use a layer of crushed gravel and landscape fabric to ensure proper water movement, which prevents settling and enhances the wall's retention capabilities.
