Remodel Electrical Box

Thinking about remodeling your electrical box? You’re not alone. Many homeowners find that upgrading their electrical systems not only enhances safety but also boosts home value. Whether you're adding new circuits for a renovation or simply updating outdated wiring, understanding the process is crucial.

Costs can vary widely, typically ranging from $200 to $1,500 depending on the complexity of the job and local labor rates. Factors like the size of your home and the type of electrical box you choose will also influence your budget. With the right knowledge and preparation, you can tackle this project confidently and ensure your home is both functional and safe.

Overview of Remodel Electrical Boxes

Remodel electrical boxes, often labeled as "old work" or "retrofit" boxes, cater to installations in walls with existing drywall or other finishes. These boxes facilitate the addition of new outlets, switches, or light fixtures without the need for drywall removal.

Key Characteristics

• Installation: Remodel boxes install seamlessly in closed walls, where drywall is already present. They eliminate the requirement for attachment to a stud, making them ideal for retrofitting existing walls.
• Attachment Mechanism: These boxes feature built-in clamps, wings, or ears that extend and clamp the box securely against the drywall. This mechanism holds the box firmly, ensuring stability even without stud support.

• Locating the Area: Utilize a stud finder to detect stud locations to avoid any marking errors. Ensure the box is ideally positioned between studs for optimal installation.

Understanding these components will allow you to approach your electrical remodeling project with confidence, ensuring functionality and safety in your living space.

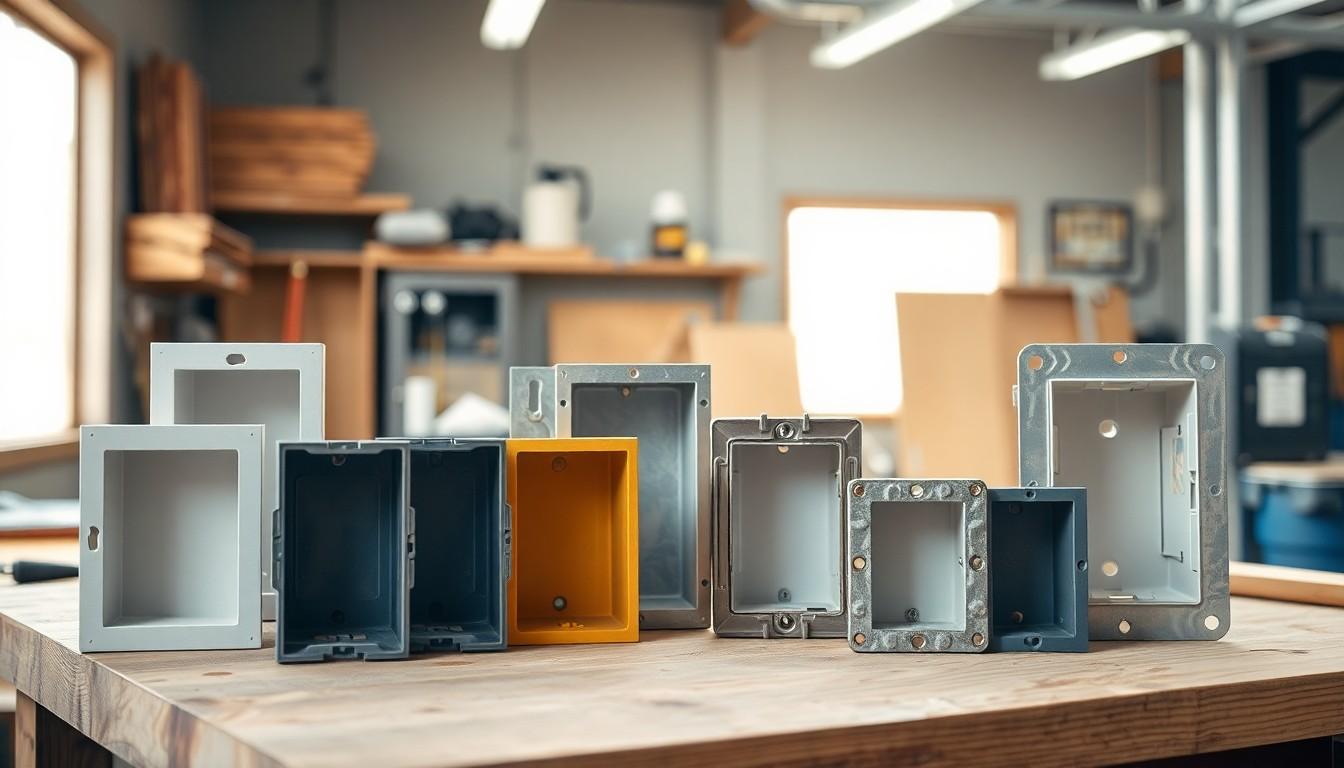

Types of Remodel Electrical Boxes

You can choose from various types of remodel electrical boxes to suit your project's needs. Understanding the differences will help you make informed decisions while upgrading your electrical system.

New Construction Boxes

New construction boxes are ideal for installations in unfinished walls. These boxes attach directly to the framing members. They feature adjustable brackets that allow positioning before the drywall is installed. Typically made of metal or plastic, new construction boxes accommodate various electrical components, ensuring a secure fit and reliable function.

Old Work Boxes

Old work boxes, also known as retrofit boxes, are designed for installation in existing walls. These boxes contain built-in clamps or tabs that grip the drywall from behind. After drywall installation, you can push the box into the wall, making it easier to add new outlets, switches, or fixtures without damaging the wall. Old work boxes are available in plastic or metal, providing durability and versatility for your remodeling needs.

Installation Process

To install a remodel electrical box, gather essential tools and follow a clear step-by-step guide. This ensures a smooth and efficient installation while maintaining safety standards.

Tools Required

• Stud Finder: Locates studs to avoid damaging them during installation.
• Utility Knife: Scores the drywall to prepare for cutting.
• Drywall Saw or Jab Saw: Cuts out the hole needed for the box.
• Torpedo Level: Checks that the box is level and plumb, ensuring a professional finish.
• Straightedge: Extends lines and guarantees straight, precise cuts.
• Screwdriver or Drill: Tightens screws that secure the electrical box in place.
• Oscillating Tool (Optional): Provides precision cutting in drywall for easier installation.

1. Locate the Installation Site: Use a stud finder to find the best spot for the box away from any studs. Mark the location on the wall.
2. Score the Drywall: Employ a utility knife to score along the marked outline where the box will fit. Cut gently to avoid unnecessary damage.
3. Cut the Drywall: Use a drywall saw or jab saw to cut out the scored section, creating a hole matching the size of the electrical box.
4. Insert the Electrical Box: Slide the remodel electrical box into the hole. Adjust it until it sits flush with the wall.
5. Secure the Box: Tighten the screws on the sides of the box. Built-in clamps should hold the box securely against the drywall.
6. Level the Box: With a torpedo level, ensure the box is level and plumb during installation.
7. Make Electrical Connections: Once secured, connect the electrical wires according to the local codes and manufacturer's instructions.
8. Install the Cover Plate: After connections are complete, attach the cover plate to finalize the installation.

Following these steps carefully enhances both the functionality and safety of adding electrical components in your home.

Safety Considerations

Addressing safety considerations is crucial when remodeling an electrical box. Understanding electrical code compliance and methods to prevent electric shock ensures a safe environment for you and your family.

Electrical Code Compliance

Electrical code compliance involves adhering to regulations set forth by local and national authorities. These codes dictate standards for electrical installations, ensuring safety and reliability. Familiarize yourself with the National Electrical Code (NEC) and local amendments before starting your project. Compliance often requires the following:

• Permits and Inspections: Obtain necessary permits to validate your installation. Schedule inspections as mandated to confirm adherence to safety standards.
• Proper Box Ratings: Select remodel electrical boxes rated for the intended use, such as for power outlets or lighting fixtures. UL (Underwriters Laboratories) labels indicate compliance with safety standards.
• Installation Height and Location: Follow code guidelines on the appropriate height and location for electrical boxes, factoring in accessibility and safety.

Preventing Electric Shock

Preventing electric shock hinges on implementing safety measures during installation and maintenance. Follow these strategies to minimize risks:

• Turn Off Power: Always turn off power at the circuit breaker before starting any work. Confirm this with a voltage tester to ensure live wires remain inactive.
• Use Insulated Tools: Employ insulated tools when working on electrical components. Insulated handles prevent accidental shocks, providing an additional layer of protection.
• Seal Connections: Ensure all wiring connections are secure and insulated with proper materials. Use electrical tape or wire connectors to prevent accidental contact with live wiring.
• Install GFCI Outlets: In areas with moisture, such as kitchens and bathrooms, install Ground Fault Circuit Interrupter (GFCI) outlets. These outlets detect imbalances in electrical current and automatically shut off, reducing the risk of electric shock.

Implementing these safety considerations maintains a secure environment during your electrical box remodeling project.

Best Practices for Remodeling

When remodeling electrical boxes, follow these best practices to ensure a safe and professional installation.

Choosing the Right Box

• Remodel boxes fit perfectly into walls with existing finishes, such as drywall or plaster. Select boxes that do not require access to wall studs to simplify the installation process.

Installation Process

• Cut the Opening: Measure the location where the outlet will be, then cut the correct opening size in the wall. Ensure the cutout is snug for the remodel box.
• Insert the Box: Carefully insert the remodel box into the opening. Use a level for checking that the box is both plumb and level.
• Secure the Box: Tighten the adjustable clamps or tabs by turning the screws. This action pulls the clamps against the wall’s back, securely holding the box in place.

• Follow Codes: Familiarize yourself with the National Electrical Code (NEC) and local amendments. Ensure that you follow all regulations for box ratings and installation height.
• Power Off: Always turn off power at the circuit breaker before starting the installation. This step prevents potential electric shock during the remodeling process.
• Use Insulated Tools: Utilize insulated tools to minimize the risk of electric shock while working.
• Seal Connections: Ensure that all electrical connections are sealed properly to prevent issues in the future.
• Install GFCI Outlets: Place Ground Fault Circuit Interrupter (GFCI) outlets in areas prone to moisture, such as bathrooms and kitchens, for added safety.

Implementing these best practices maximizes both the functionality and safety of your electrical box remodeling project.

Conclusion

Remodeling your electrical box can significantly enhance your home's safety and value. By understanding the different types of remodel boxes and following proper installation practices, you can successfully upgrade your electrical system with confidence.

Always prioritize safety by adhering to electrical codes and implementing essential precautions. With the right tools and knowledge, you can tackle this project effectively, ensuring a functional and secure environment for your family. Embrace the opportunity to improve your space and enjoy the benefits of a well-executed electrical upgrade.

Frequently Asked Questions

What are the benefits of remodeling an electrical box in a home?

Remodeling an electrical box improves safety and can increase your home’s value. It allows for the addition of new outlets or switches without major renovations. Overall, it enhances functionality and meets changing electrical needs.

How much does it cost to remodel an electrical box?

The cost to remodel an electrical box typically ranges from $200 to $1,500. Factors like job complexity, home size, and the type of electrical box selected significantly influence the overall cost.

What is a remodel electrical box?

A remodel electrical box, also known as an "old work" box, is designed for installation in finished walls without removing drywall. They are ideal for adding new outlets or lights in homes with existing construction.

What tools are needed for installing a remodel electrical box?

Essential tools include a stud finder, utility knife, drywall saw, torpedo level, straightedge, and a screwdriver or drill. An oscillating tool may also be useful for cutting.

What are the safety considerations when remodeling an electrical box?

To ensure safety, always turn off power at the circuit breaker, use insulated tools, and seal connections properly. Familiarize yourself with the National Electrical Code (NEC) and check local amendments for compliance.

How do I install a remodel electrical box?

Begin by locating the installation site and cutting the drywall. Insert the box, secure it, level it, connect the wiring, and finally, install the cover plate. Following these steps ensures correct installation.

What type of remodel electrical box should I choose?

Choose a remodel electrical box compatible with your existing wall finishes. Consider the box’s size, depth, and electrical rating. It’s important to select one that fits the space without needing access to wall studs.
